Product Details

Enjoy the most natural interactive digital experience

Modern meeting spaces drive the demand for advanced touch technology with innovative design. To support interactive sessions, the NEC InGlassTM Touch Board along with the responsive passive pen brings superior paper-like writing with minimal latency to a digital canvas. With its slim bezel design, the technology seamlessly integrates into modern interior styling.

High brightness levels ensure excellent readability and image reproduction even in today’s typically bright meeting spaces where maintaining a motivational environment is paramount. The anti-glare coating minimizes disturbing reflections and helps to eliminate niggling fingerprints on the touch surface.

Benefits

  • Best-in-class visual performance – benefit from a „pixel-free“ Ultra-High Definition (UHD) visual performance.
  • Natural writing experience – it’s like working on paper! Whether using finger or pen, the InGlass™ touch technology provides seamless interactive touch performance including Windows Ink and palm rejection.
  • Future Ready with Open Modular Intelligence Expansion – upgrade the power of your display at any time by seamlessly integrating one of NEC’s options for OPS Slot-in PCs, Raspberry Pi compute modules or signal interfaces for content feed and computing.
  • Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
  • Be more productive – get a free version of FlatFrog Board for Rooms! FlatFrog Board whiteboard software makes hybrid work easy and equally productive for everyone.

DISPLAY

Panel TechnologyIPS with Edge LED backlights
Active Screen Area (W x H) [mm]1,649.7 x 927.9
Screen Size [inch/cm]75 / 189
Brightness [cd/m²]500, 350 (shipment setting)
Contrast Ratio (typ.)1200:1
Viewing Angle [°]178 / 178 (at contrast ratio > 10:1)
Colour Depth [bn]1.073 (10bit)
Response Time (typ.) [ms]8 (grey-to-grey)
Haze Level [%]Pro (28)
Supported OrientationFace Up 1; Landscape; Portrait
TOUCH
Touch TechnologyInGlass™
Number of TouchesReal multi-touch up to 20 touches
Response Time [ms]≤ 15
Touch MethodFinger; Gloves; Stylus (≥ 2 mm)
Supported Operating SystemNative Multi-Touch: Windows 7, Windows 8, Windows 10, Linux, Android; Default Mouse: Windows XP, Windows Vista, Mac OS X
Data InterfaceUSB-HID
Accuracy [mm]< 1
Palm Rejectionno
Windows Inkyes
GLASS
TypePremium toughened glass, anti-glare coating
Thickness [mm]3
Light Transmission [%]88 ( /- 1 %)
RESOLUTION
Native Resolution
3840 x 2160
Supported Resolutions
1920 x 1080;1920 x 2160;3840 x 2160;4096 x 2160
SYNCHRONISATION RATE
Horizontal Frequency [kHz]31.5 - 91.1
Vertical Frequency [Hz]24 - 85
CONNECTIVITY
Input Video Digital2 x DisplayPort (with HDCP); 3 x HDMI (with HDCP)
Input Audio Analogue1 x 3,5 mm jack
Input Audio Digital2 x DisplayPort; 3 x HDMI
Input Control1 x LAN 100Mbit; 1 x Remote Control (3.5 mm jack); 1 x RS232
Input Data1 x microSD (MediaPlayer); 1 x USB 2.0 (Downstream); 1 x USB 2.0 (MediaPlayer); 1 x USB Type-B (Upstream); 2 x USB 2.0 (Compute Module, 1 x 5V/2A powered)
Output Video Digital1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC)
Output Audio Analogue1 x 3,5 mm jack
Output Control1 x LAN 100Mbit
USB Hub4x USB 3.0
OPEN MODULAR INTELLIGENCE
OPS SlotSlot Technology: Open pluggable specification (NEC / Intel OPS standard)
OPS Max. Current / Power Consumption [A / W]4.7 / 75
Compute Module SlotSlot Technology: Compute Module 3 Slot (NEC proprietary standard)
SENSORS
Human SensorOptional, external, 4-5m range, triggered actions programmable
Temperature SensorIntegrated, 3 sensors, triggered actions programmable
ELECTRICAL
Power Consumption Eco/max. [W]167 shipping
Power Savings Mode [W]< 0.5; < 2 (Networked Standby)
Power ManagementVESA DPMS
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] 0 to 35
Operating Humidity [%]20 to 80
MECHANICAL
Dimensions (W x H x D) [mm]Without stand: 1,724.6 x 1,003 x 81.3
Weight [kg]73
Bezel Width [mm]18.8
VESA Mounting [mm]4 holes; 400 x 400 (FDMI); 600 x 400 (FDMI); M8
Ingress ProtectionIP5x (front); IP2x (back)
MEDIAPLAYER
Supported File Storage / File SystemMicroSDHC / FAT16, FAT32; USB 2.0 / FAT16, FAT32
Supported Image FormatsJPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000
Supported Video FormatsMP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz
Supported Audio FormatsMP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling
AVAILABLE OPTIONS
AccessoriesSoundbar; Speaker (InfinityBoard Speaker SP-75IBSM, SP-TF1); Trolley (PD02MHA, PD03MHA, PD02MHM); Wall mount (BalanceBox 400 HEAVY, PDW T XL-2)
Compute Module SlotNEC Compute Module; Raspberry Pi Compute Module 1 and 3
OPS SlotHDBaseT receiver; Intel® Atom, Celeron and Core CPUs; OPS-2C Quad 3G SDI
GREEN FEATURES
Energy EfficiencyCarbon savings meter; ECOMode; Local dimming
ADDITIONAL FEATURES
Special Characteristics12-bit Look Up table; Ambient Light Sensor; AMX NetLinx Support; ASCII Control Commands; Auto ID assignment; Auto tiling function; Automated Email Alert; CEC Support; Cisco Webex Kit compatible; Crestron Connected Support; DICOM Simulation; Display Browser Control; Emergency Notification; HDMI with UHD at 60 Hz; HDR Gamma Support (HLG, PQ); KeyGuide; MediaPlayer with Browser Control; NaViSet Administrator 2; OmniColor Control; OSD rotation for portrait mode; PIN as theft protection; PJLink Support; Powered USB-Port; Removable Logo; Scheduler; Slim LED Indicator; SNMP Support; TileMatrix (10 x 10); User readable log function
Safety and ErgonomicsCE; EMC Class B; FCC; REACH; RoHS
Pixel Failure ClassISO 9241-307, Class 1
AudioIntegrated Speakers (10 W 10 W); Optional Speakers (15 W 15 W)
Shipping Content1x 10 cm USB Cable; 2 x Stylus; 2x 300 cm USB Cable; CD-ROM (User Guides/Manuals); Display; DisplayPort Cable; Power Cable; Remote Control
Warranty3 years warranty incl. backlight; optional 4. 5. year warranty extension 2
Operating Hours24/7

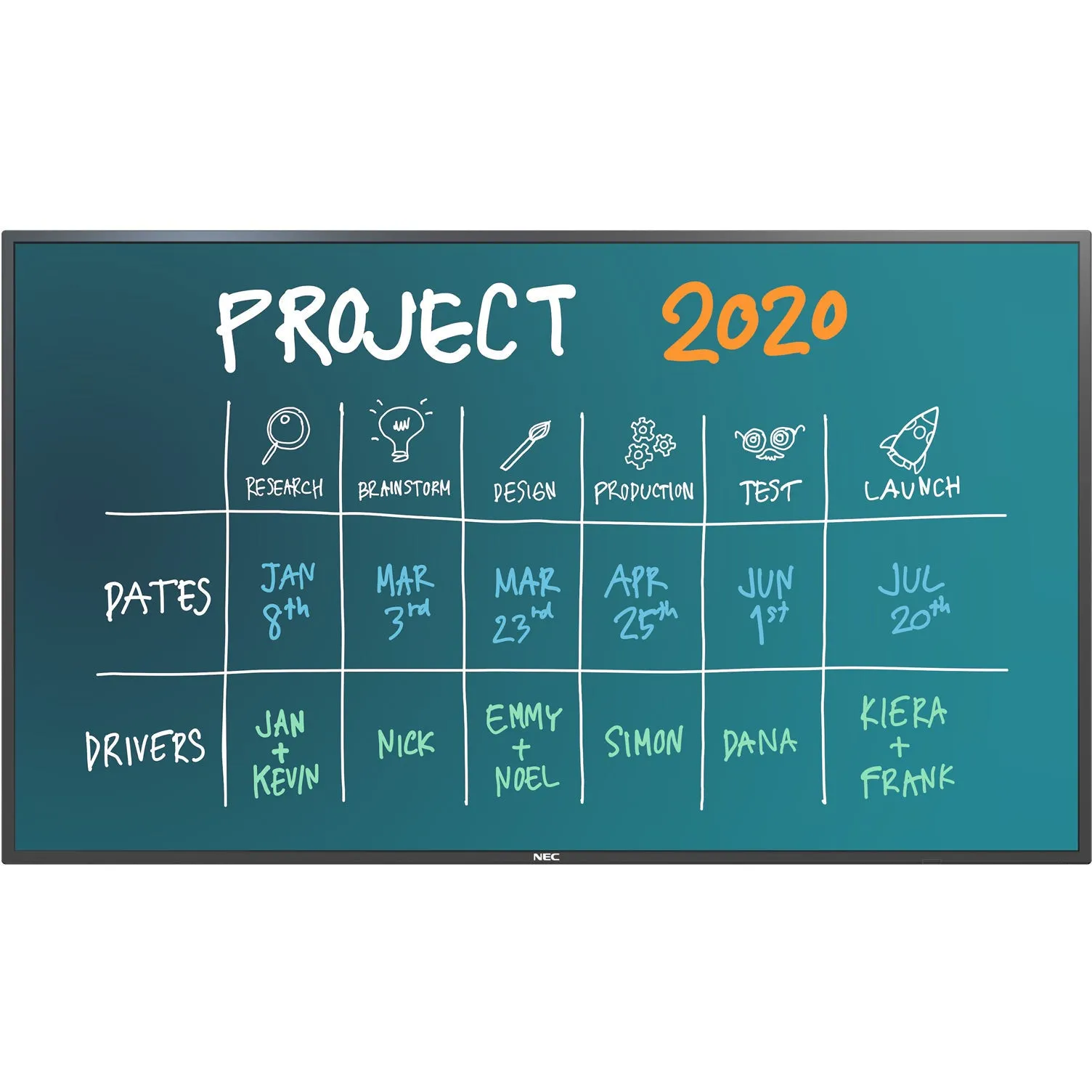

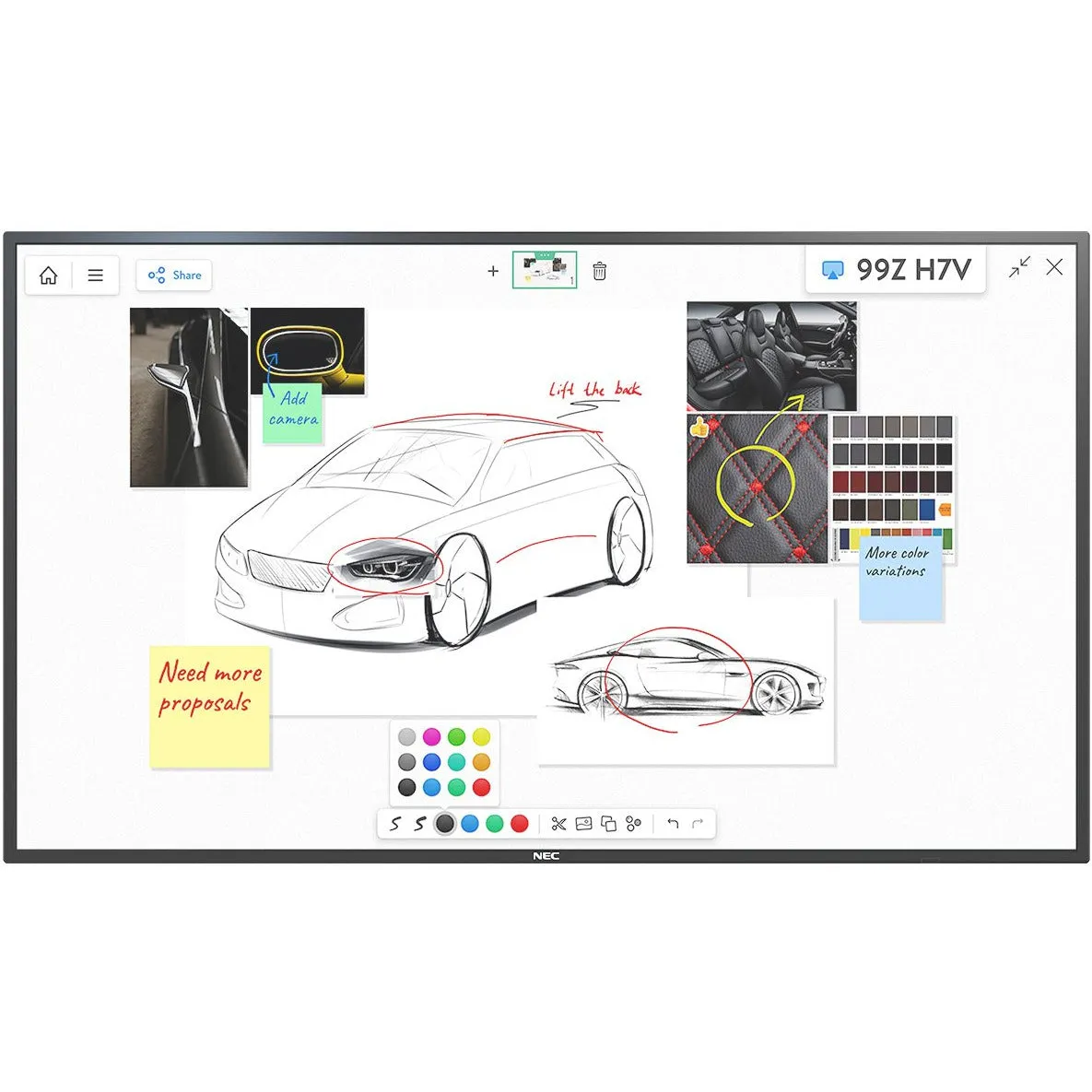

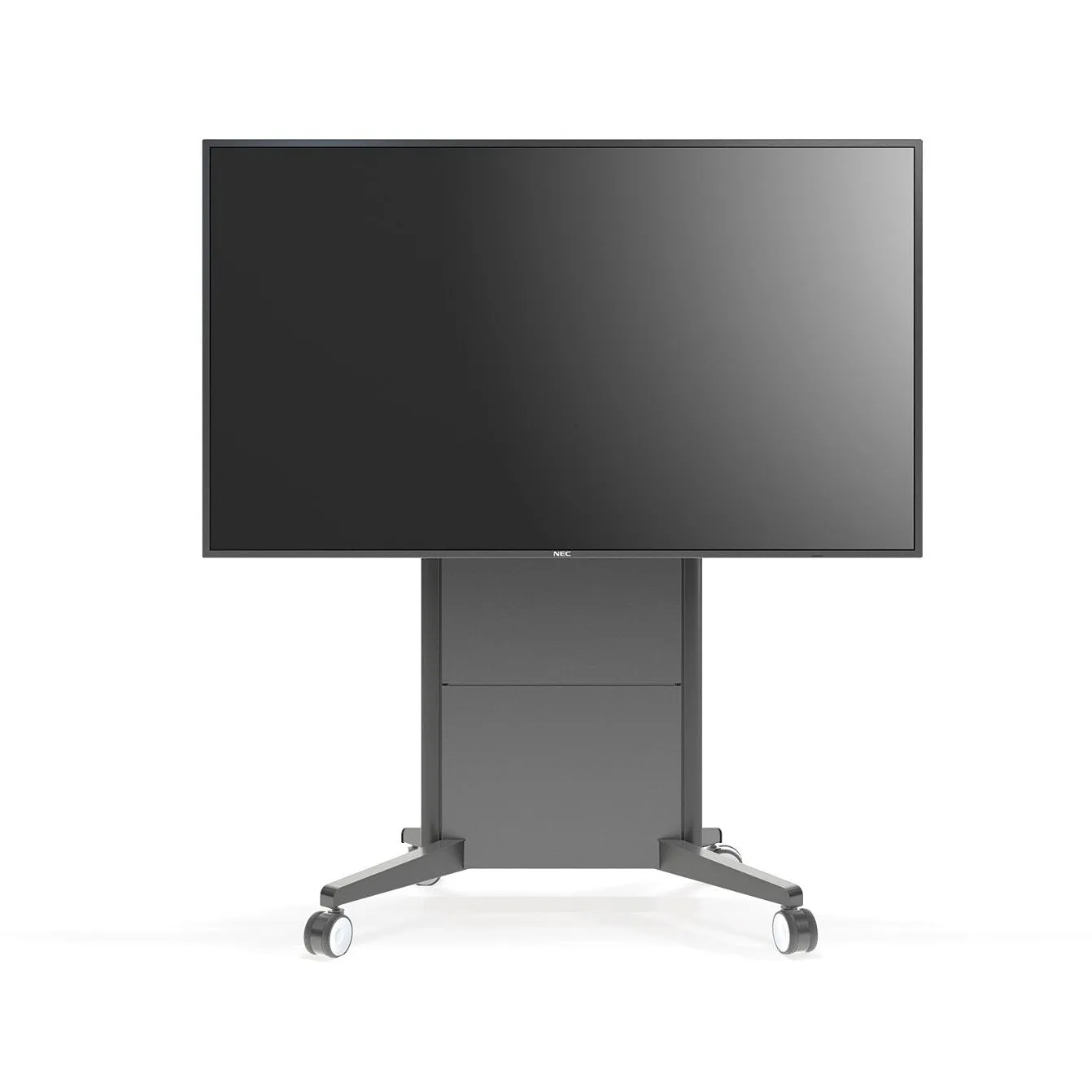

NEC MultiSync® V754Q IGB LCD 75" InGlass™Touch Display

$ 54.83

$ 42.18
