Product Details

Enter a world of interactive white-boarding

Upgrade your lectures and meetings with NEC’s all-in-one collaboration boards, in three different sizes, featuring UHD resolution and up to 20 touch points. Based on infrared touch technology the user experiences perfect usability with a rapid touch response. Business and educational sessions start-up instantly with built-in whiteboard and wireless screen sharing functionalities without any hidden costs. The embedded annotation tool lets you annotate over any content shown on the screen.

For more demanding applications, the OPS slot provides the opportunity to enhance the computing power. With sizes including 65’’, 75’’ and 86’’, the NEC CB Series offers the ideal solution for your meeting and class rooms.

All NEC CB Series displays come with three magnetic pens and a wall-mount fitting for easy installation.

Benefits

  • Out-of-the-box collaboration – thanks to embedded computing with built-in annotation tools and wireless presentation capabilities.
  • Protective Glass – premium toughened glass protects the security of the panel yet delivers a perfect touch experience with anti-glare coating to minimise reflections and fingerprints.
  • Multi-Touch – true multi-touch support with up to 20 simultaneous touch points.
  • Simple operation – with easy front access to USB ports and controls for major functionalities
  • Cost Saving Device Management – save effort whilst managing all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.

DISPLAY

Panel TechnologyIPS with Direct LED backlights
Active Screen Area (W x H) [mm]1,428.5 x 803.5
Screen Size [inch/cm]65 / 163.9
Aspect Ratio16:9
Pixel Pitch [mm]0.372
Brightness [cd/m²]350, 300 (shipment setting)
Contrast Ratio (typ.)1200:1
Viewing Angle [°]178 / 178 (at contrast ratio > 10:1)
Colour Depth [bn]1,073 (10bit)
Response Time (typ.) [ms]8 (grey-to-grey)
Haze Level [%]3
Supported OrientationLandscape
TOUCH
Touch TechnologyInfrared
Number of TouchesReal multi-touch up to 20 touches
Touch MethodFinger; Gloves; Stylus (≥ 8 mm)
Supported Operating SystemNative Multi-Touch: Windows 7, Windows 8, Windows 10, Linux, Android; Default Mouse: Windows XP, Windows Vista, Mac OS X
Data InterfaceUSB-HID
Accuracy [mm]< 2
Palm Rejectionno
Windows Inkno
GLASS
TypeThermal-tempered, anti-glare coating
Thickness [mm]4
Light Transmission [%]88 ( /- 1 %)
Reflection Rate [%]4
Hardness [H]7
RESOLUTION
Native Resolution
3840 x 2160
Supported Resolutions
1920 x 1080;3840 x 2160;4096 x 2016
Supported on HDMI only
3840 x 2160 (60 Hz);4096 x 2016 (24 Hz)
SYNCHRONISATION RATE
Horizontal Frequency [kHz]26 - 135
Vertical Frequency [Hz]23 - 86
CONNECTIVITY
Input Video Analogue1 x VGA
Input Video Digital3 x HDMI
Input Audio Analogue1 x 3,5 mm jack
Input Audio Digital3 x HDMI
Input ControlLAN 100Mbit; RS232
Input Data2 x USB Type-B (Upstream); 6 x USB 2.0 (Downstream)
Output Audio Analogue1 x 3,5 mm jack
Output Audio Digital1 x SPDIF
Output Control1 x LAN 100Mbit
OPEN MODULAR INTELLIGENCE
OPS SlotSlot Technology: Open pluggable specification (NEC / Intel OPS standard)
OPS Max. Current / Power Consumption [A / W]3.5 / 63
ELECTRICAL
Power Consumption Eco/max. [W]165 Eco (shipment setting), 400
Power Savings Mode [W]< 0.5; < 2 (Networked Standby)
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] 0 to 40
Operating Humidity [%]10 to 90
MECHANICAL
Dimensions (W x H x D) [mm]Without stand: 1,488.4 x 896.8 x 87.5
Weight [kg]Without stand: 39.2
Bezel Width [mm]17.7 (left, right and top); 45.7 (bottom)

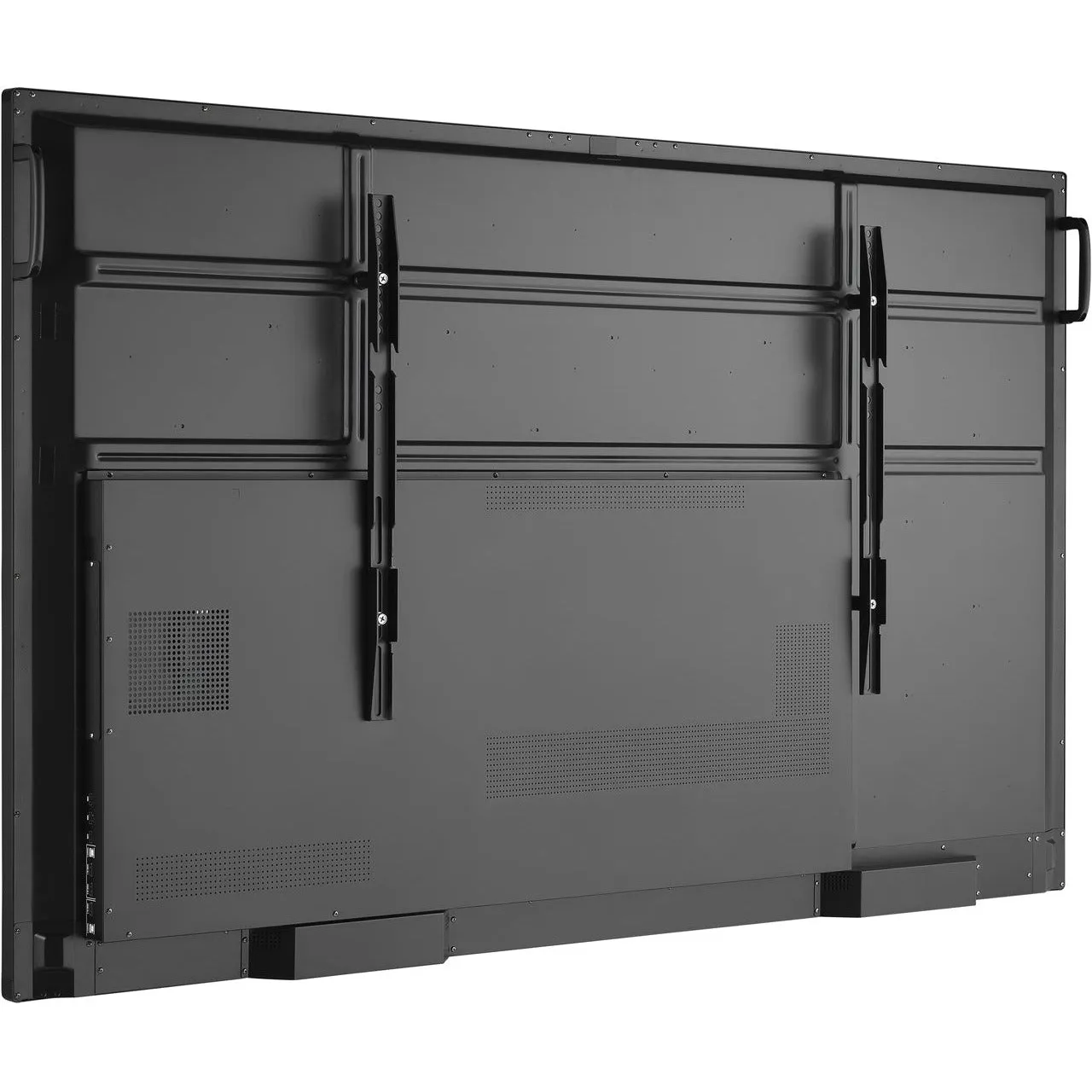

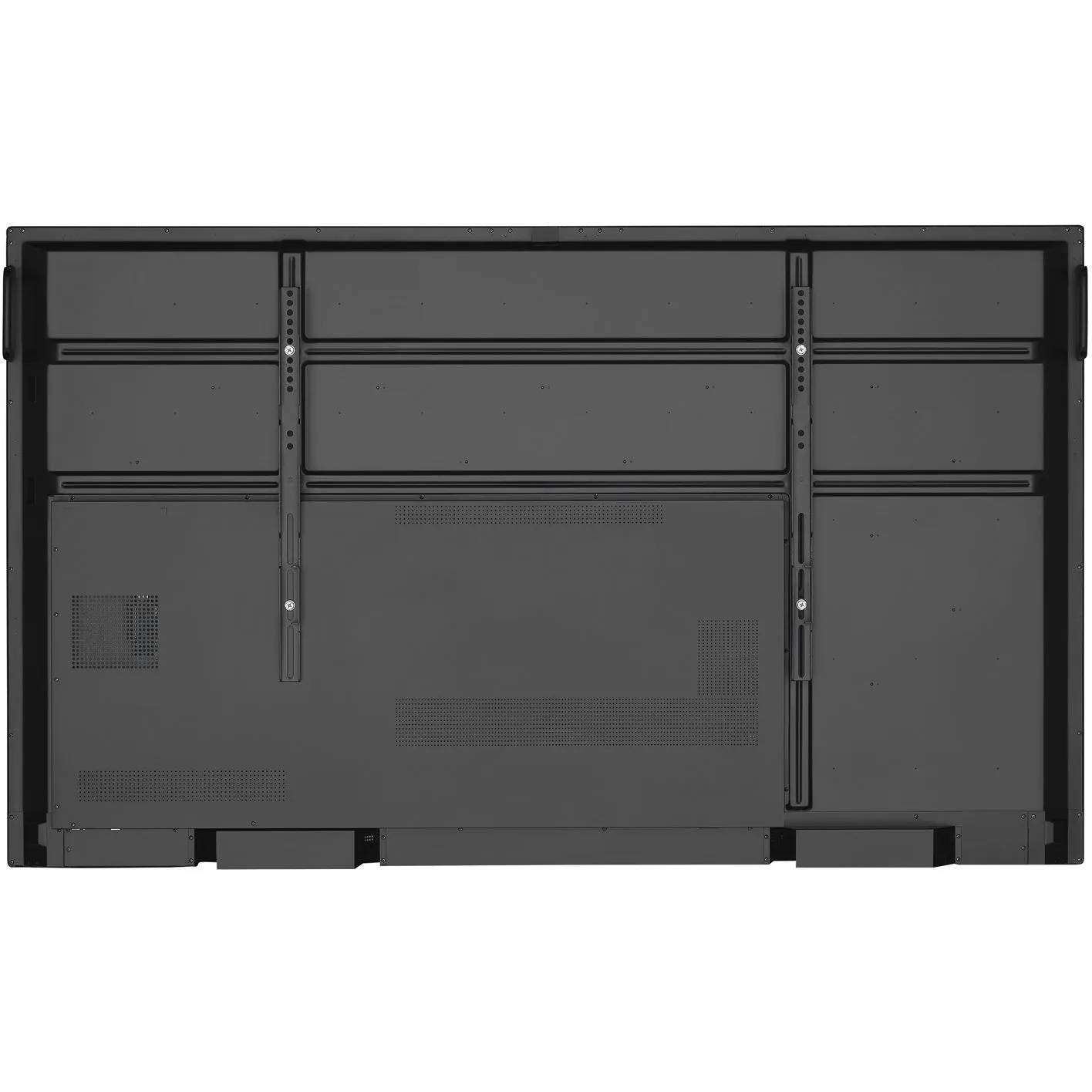

VESA Mounting [mm]4 holes; 600 x 400 (FDMI); M8
EMBEDDED COMPUTING

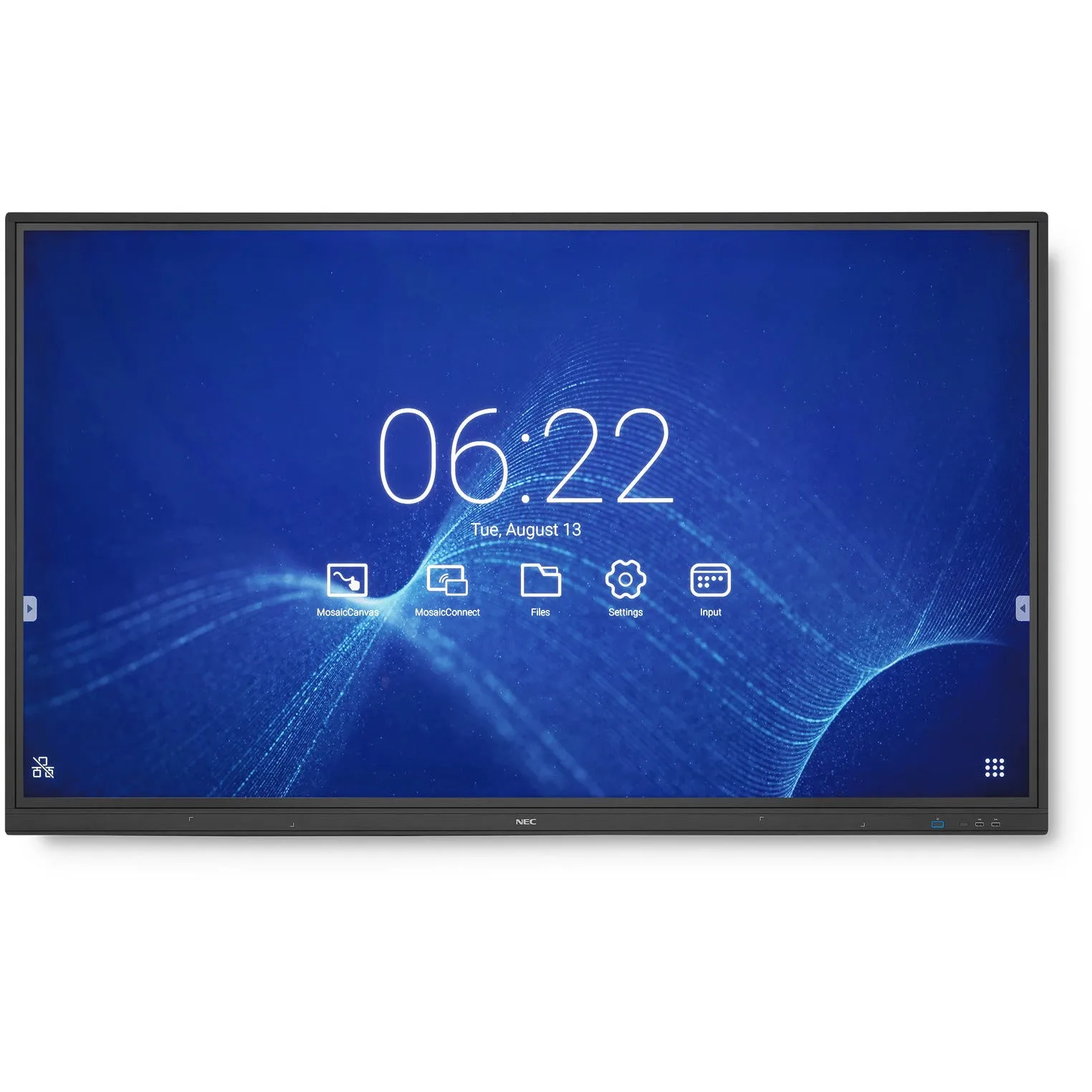

Built-in ApplicationsFile Manager; Input Select; Setting; Web Browser; Whiteboard - Mosaic Canvas; Wireless Presentatiom - Mosaic Connect
System Memory2G RAM
Internal Storage16GB ROM
AVAILABLE OPTIONS
AccessoriesSoundbar (Active Collaboration Soundbar SP-ASCM - not supported by embedded compute); Trolley (PD02MHA, PD03MHA); Wall mount (BalanceBox 400 MEDIUM; 1x standard wall mount included); Wireless LAN module NP05LM2 (Europe); Wireless LAN Module NP05LM4 (Russia)
OPS SlotHDBaseT receiver; Intel® Atom, Celeron and Core CPUs; OPS-2C Quad 3G SDI
ADDITIONAL FEATURES
Special CharacteristicsAMX NetLinx Support; HDMI with UHD at 60 Hz; NaViSet Administrator 2; Scheduler
Colour VersionsBlack Front Bezel, Black Back Cabinet
Safety and ErgonomicsBSMI; CE; EAC; EMC Class B; FCC; PSB; RCM; REACH; RoHS; SASO; UL/C-UL
AudioIntegrated Speakers (2 x 12 W)
Shipping Content3 x Stylus; HDMI Cable; Power Cable; Remote Control; USB cable; User Manual; VGA cable; Wall Mount
Warranty3 years warranty incl. backlight
Operating Hours12/7

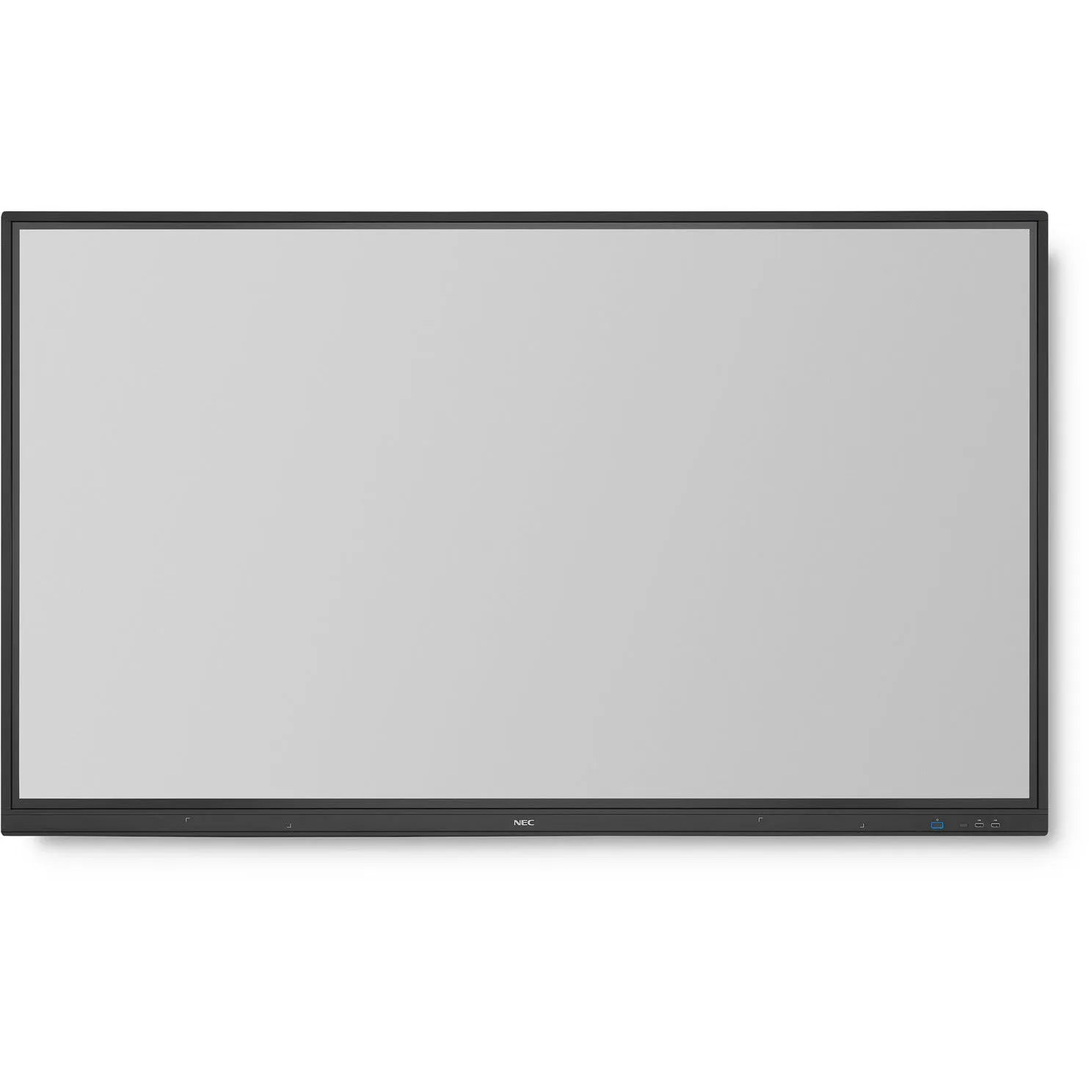

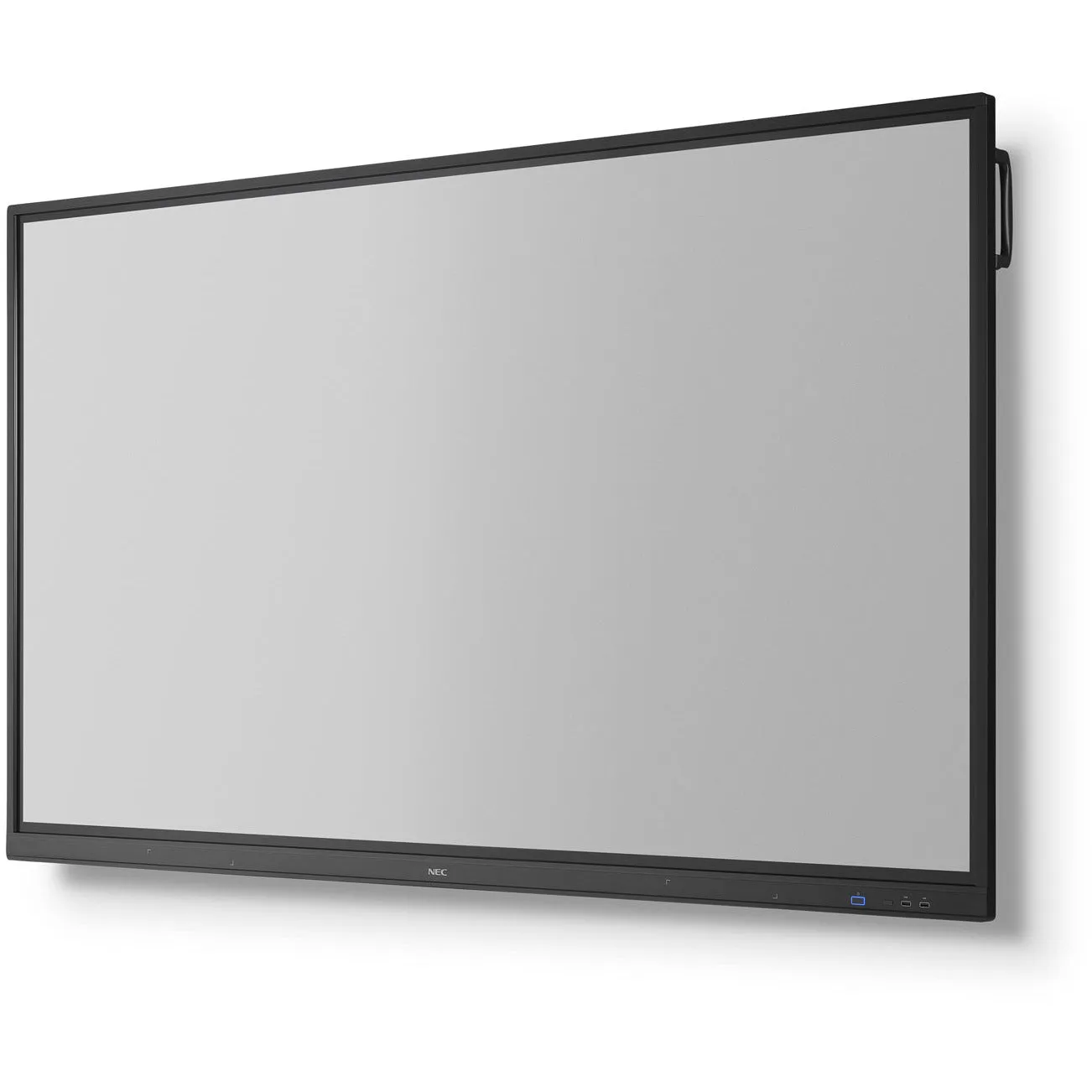

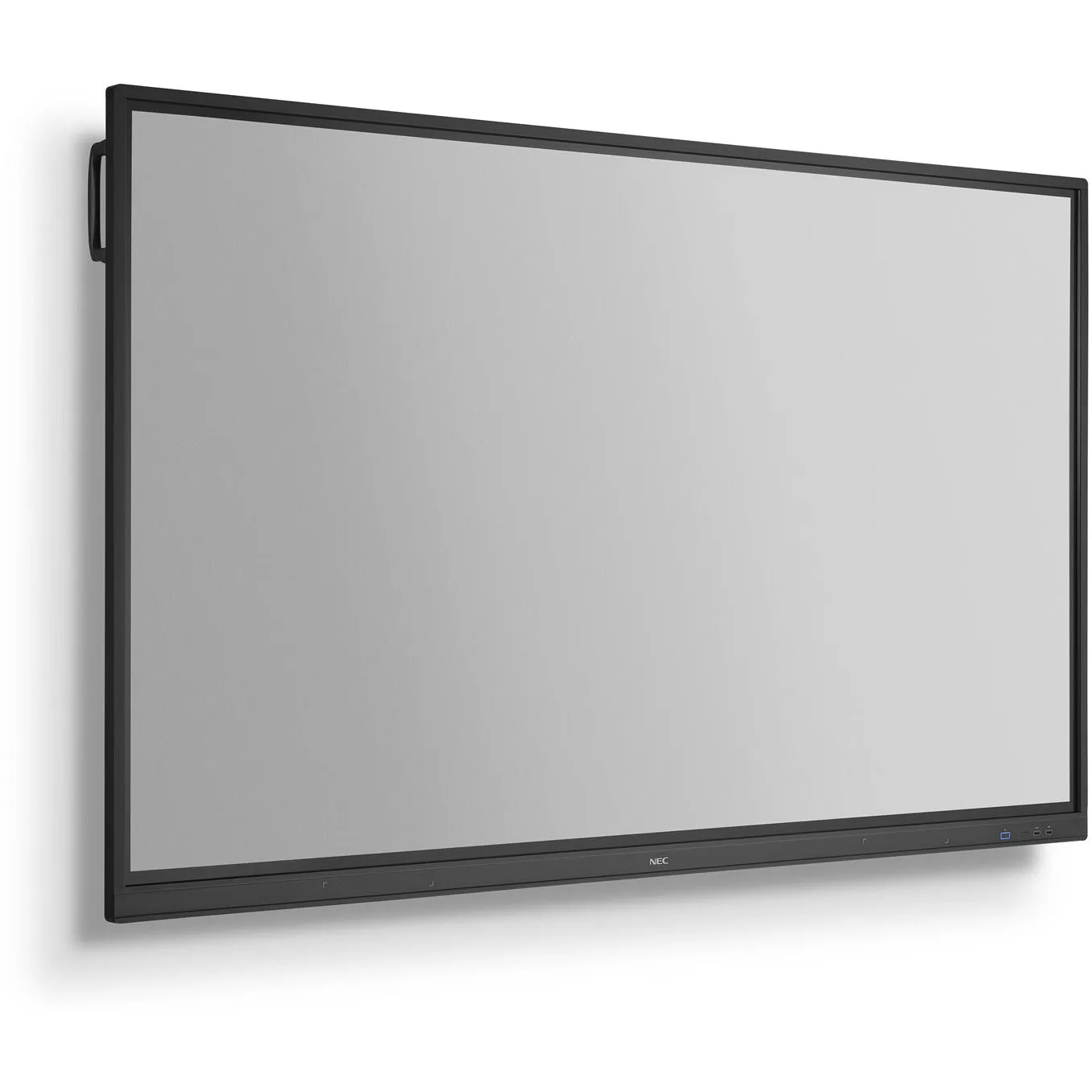

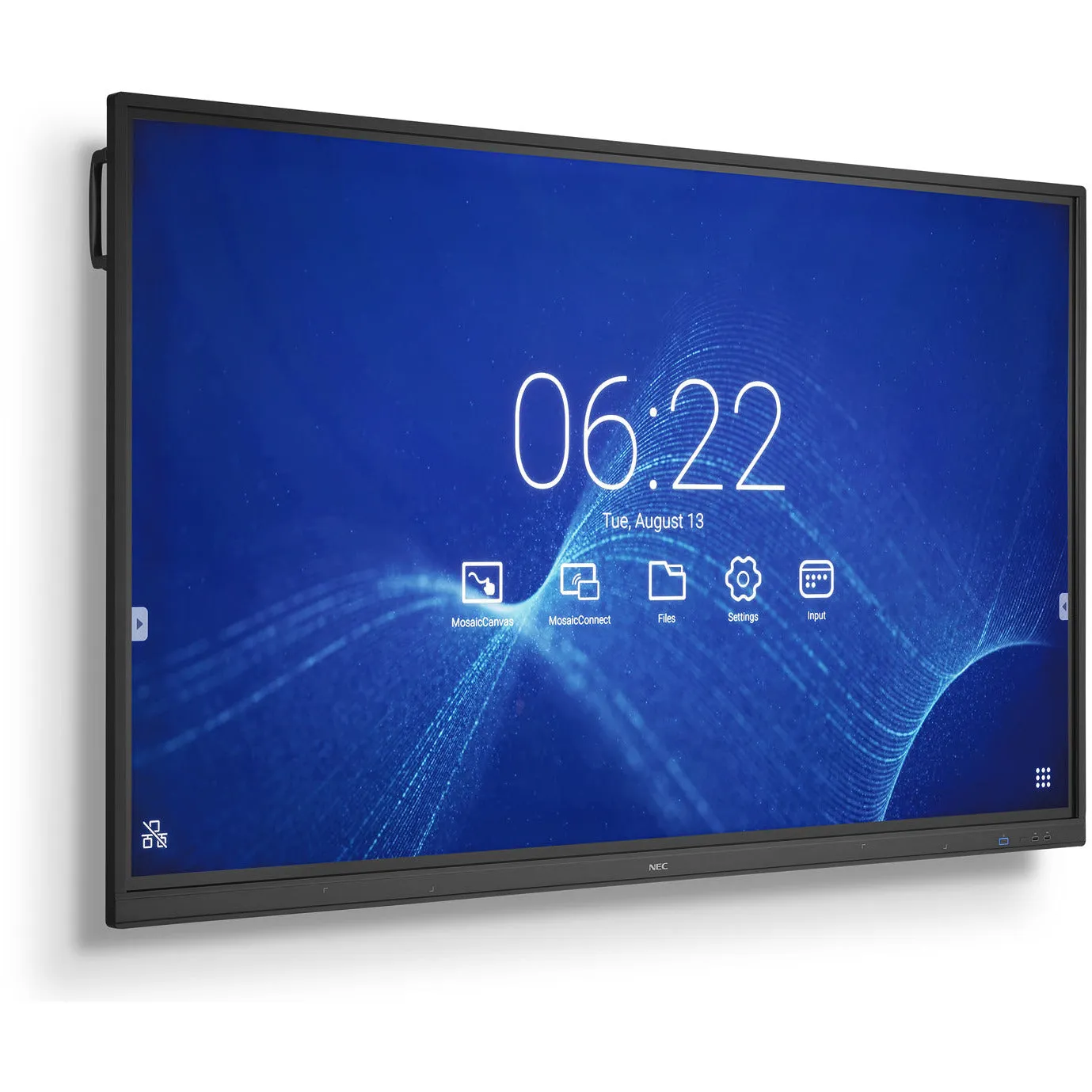

NEC MultiSync® CB651Q-2 LCD 65" Infrared Touch Collaboration Display
